stage lighting truss, global truss
it is made by the aluminum material, ( the international
aluminium type of T6 6082 6061)
the main tube for the truss is 50mm diameter , by thickness
of 3mm ,
(for some special use it is by thickness of 2mm or 4mm or
5mm )
often each pcs truss length by 0.5m /1m/ 1.5m/2m
/2.5m/3m/3.5m /4m , 0.5m~4m.
1) spigot truss, global truss, Europe truss
,Thomas truss
2) screw truss, bolt truss, strong truss
the lift system include the top piece/corner block/hinge
section/floor base/support brace,

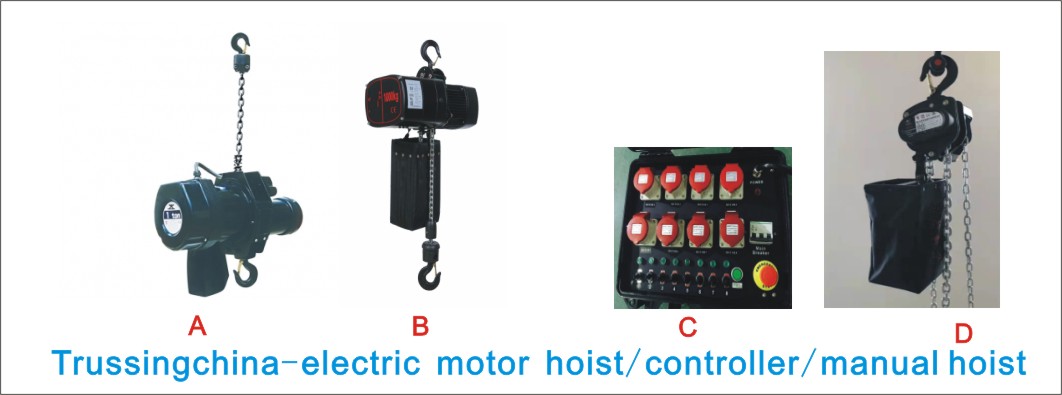

the full truss system is raise up&down by the chain lift
hoist or electric motor .
the aluminium truss international standard models as :
model:200*200mm, main tube:25*2mm,small tube:15*1.5mm,
safety span:8m, loading weight:150kg
model:220*220mm, main tube:25*2mm,small tube:15*1.5mm,
safety span:9m, loading weight:200kg
model:250*250mm, main tube:25*2mm,small tube:15*1.5mm,
safety span:10m, loading weight:300kg
model:289*289mm, main tube:50*2mm,small tube:25*2mm, safety
span:12m, loading weight:450kg
model:300*300mm, main tube:50*3mm,small tube:25*2mm,
safety span:12m, loading weight:500kg
model:350*350mm, main tube:50*3mm,small tube:25*2mm, safety
span:13m, loading weight:600kg
model:400*400mm, main tube:50*3mm,small tube:25*2mm, safety
span:15m, loading weight:700kg
model:450*450mm, main tube:50*3mm,small tube:25*2mm, safety
span:16m, loading weight:800kg
model:500*500mm, main tube:50*3mm,small tube:25*2mm, safety
span:17m, loading weight:850kg
model:400*600mm, main tube:50*3mm,small tube:25*2mm, safety
span:18m, loading weight:950kg
model:500*600mm, main tube:50*3mm,small tube:25*2mm, safety
span:20m, loading weight:1000kg
model:520*760mm, main tube:50*4mm,small tube:30*2mm, safety
span:24m, loading weight:1100kg
model:600*760mm, main tube:50*4mm,small tube:30*2mm, safety
span:26m, loading weight:1200kg
model:760*910mm, main tube:50*4mm,small tube:30*2mm, safety
span:30m, loading weight:1250kg
